Description

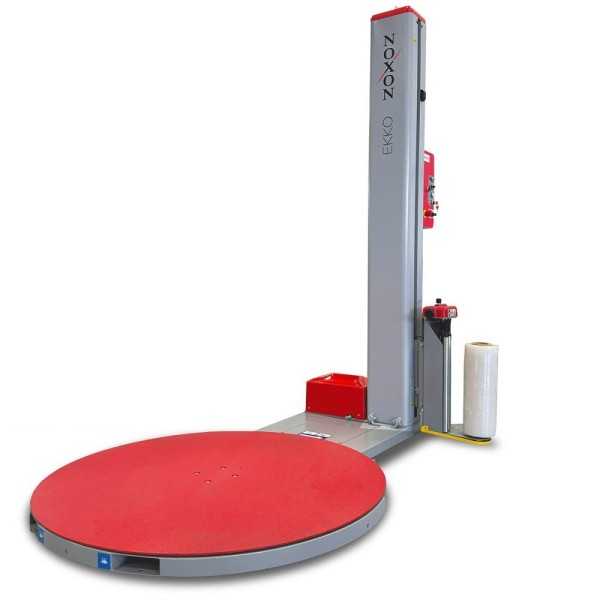

NOXON EKKO 301 is a semi-automatic stretch film wrapping platform designed for pallet wrapping.
This new-generation vertical platform combines advanced wrapping technology with a simple, ergonomic design.
Developed in compliance with the highest international safety standards, the EKKO 301 features controlled acceleration and deceleration phases, ensuring safe operation even with unstable or delicate loads.
With its high reliability, safety, and productivity, the EKKO 301 is the perfect partner for companies demanding consistent and efficient pallet wrapping.
Main features
Semi-automatic operation
Adjustable platform rotation speed: 5–12 rpm
Smooth start and stop for fragile loads

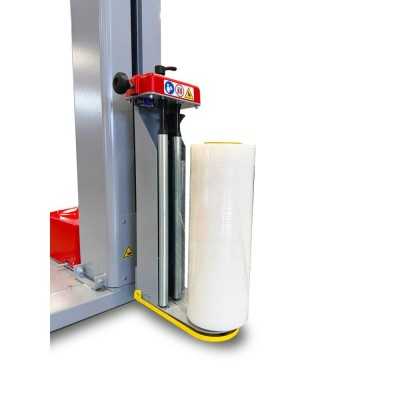

Mechanical brake film carriage
Manual film tension adjustment
Integrated photocell for load height detection
Sturdy and durable structure
Technical specifications
| Parameter | Value |
|---|
| Model | EKKO 301 |
| Operation type | Semi-automatic |
| Film carriage | Mechanical brake |
| Film tension | Manual adjustment |
| Power supply | 230 V 1 PH (±10%) 50/60 Hz |
| Installed power | 1.2 kW |
| Carriage up/down speed | 1.4–4 m/min |
| Platform rotation speed | 5–12 rpm |
| Platform diameter | Ø1500 mm (STD) / Ø1650 mm (OPT) |
| Load capacity | 1200 kg (STD) / 2000 kg (OPT) |
| Stop in phase | Standard |
| Progressive start | Standard |
| Photocell delay | Standard |
| Height sensing photocell | Standard |
| Front and rear forks | Standard |
| Min. load dimensions (L×W×H) | 500 × 500 × 500 mm |
| Max. load dimensions (L×W×H) | 800 × 1200 × 2200 mm |
| Film roll outer diameter | 300 mm |
| Roll height | 500 mm |
| Film thickness | 17–35 µm |
| Core inner diameter | 76 mm |
| Max. roll weight | 20 kg |
