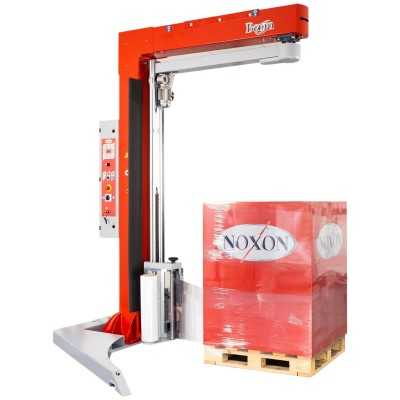

Rotating Arm Stretch Film Wrapping Machine NOXON BOOM
Description

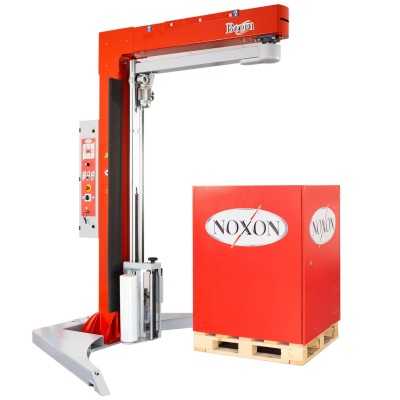

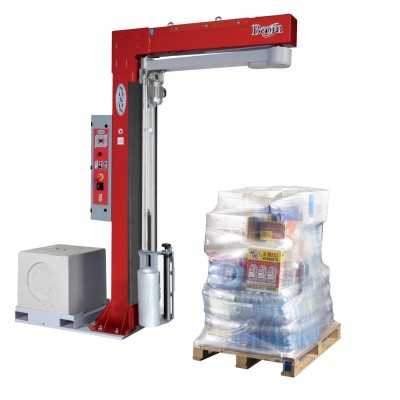

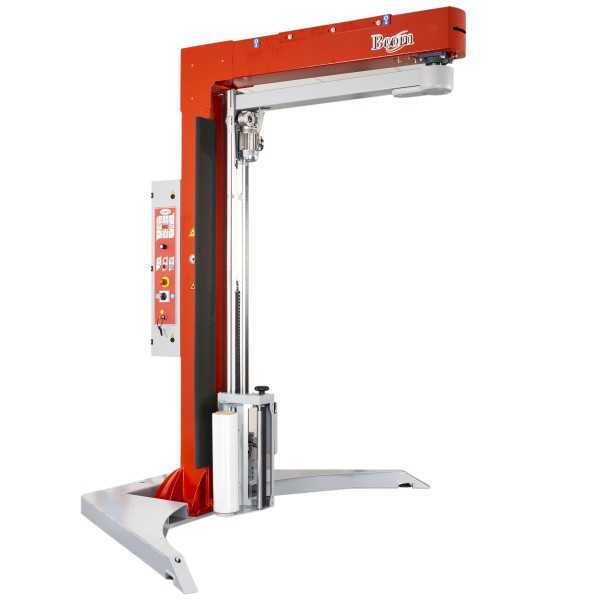

NOXON BOOM is a semi-automatic rotating arm stretch wrapping machine designed for unstable or heavy palletized loads.

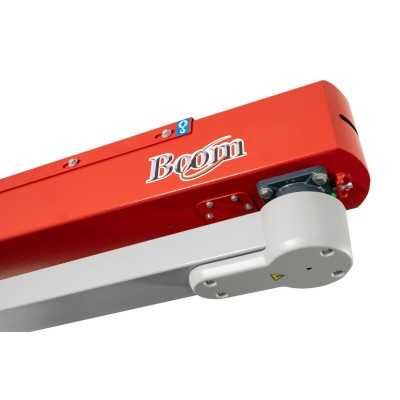

Instead of rotating the pallet, the wrapping arm moves around the stationary load, ensuring even and secure film application.

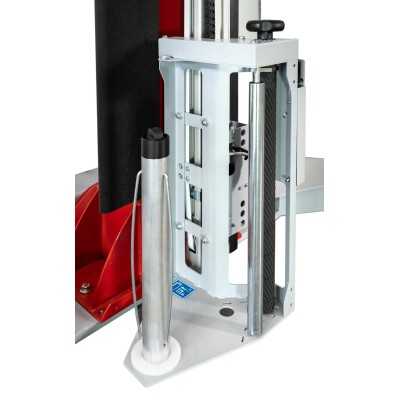

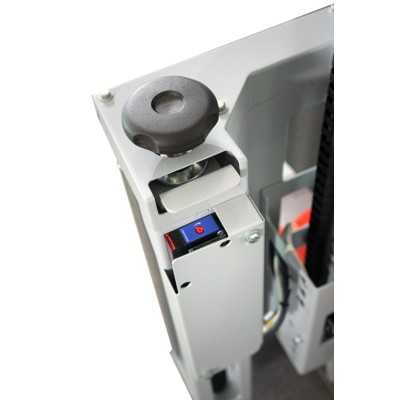

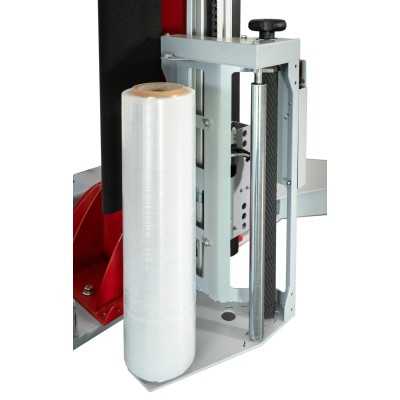

The machine is equipped with a mechanical brake film carriage (Carriage 202) that allows manual film tension adjustment.

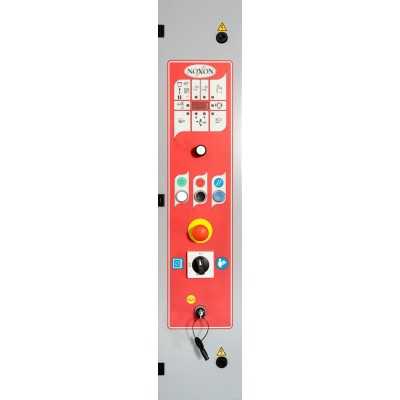

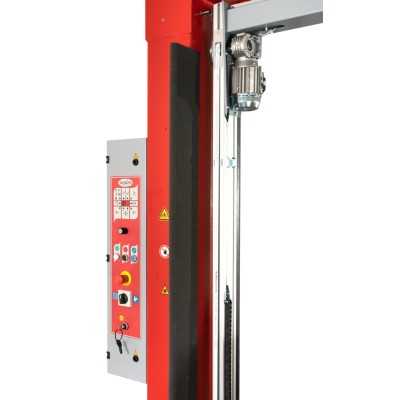

Its control panel with jog control enables fine-tuning of parameters such as arm rotation speed, film carriage speed, number of top/bottom wraps, photocell delay, and end-of-cycle height setting.
Thanks to its flexible configuration and robust build, the BOOM is ideal for applications that demand safety, reliability, and cost-effective film usage.
Main features
Rotating arm technology – load remains stationary
Ideal for unstable or heavy products
Manually adjustable film tension
Jog-controlled operator panel
Adjustable arm rotation and carriage speed
End-of-cycle height positioning
Photocell for load height detection
Soft start and emergency bumper for safety
Technical specifications
| Parameter | Value |
|---|
| Model | BOOM |
| Type | Semi-automatic |
| Usable mast height | 2000 mm |
| Arm rotation speed | 7–11 rpm |
| Carriage speed (adjustable) | 2.6–6 m/min |
| Carriage type | 202 – mechanical brake |
| Output (pallets/hour) | 20 |
| Max pallet dimensions (L×W) | 1200 × 1200 mm |
| Max load capacity | Unlimited |
| Film tension | Manual adjustment |
| Emergency bumper | Standard |
| Power supply | 230 V ±15% 1ph 50/60 Hz |
| Phase stop | Standard |
| Soft start | Standard |
| Height sensing photocell | Standard |
| Max film roll outer diameter | Ø 250 mm |
| Film roll height | 500 mm |
| Max roll weight | 8 kg |
| Film thickness | 7–35 µm |
