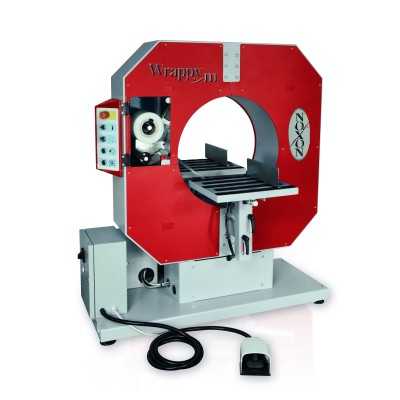

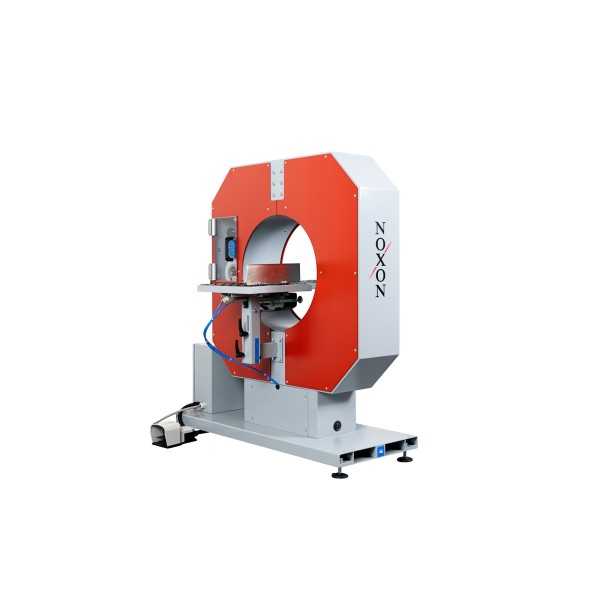

Horizontal Stretch Film Wrapping Machine NOXON WRAPPY M4
Description
NOXON WRAPPY M4 is a manual rotating ring wrapping machine designed for spiral wrapping of long or irregularly shaped products with stretch film.
Compact and efficient, it’s ideal for packaging profiles, pipes, panels, doors, frames, and other elongated products, ensuring protection against dust, moisture, and damage during handling and transport.

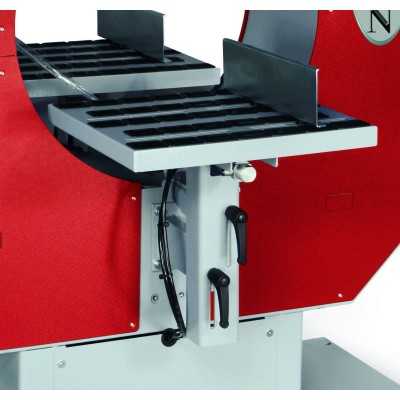

The WRAPPY M4 features a film cutting and clamping unit, adjustable conveyors, and manual speed control, allowing consistent and professional wrapping quality with minimal energy and air consumption.
Main advantages
Manual operation – simple and user-friendly
Compact design suitable for small spaces
Perfect for long or irregularly shaped items
Adjustable ring speed up to 150 rpm

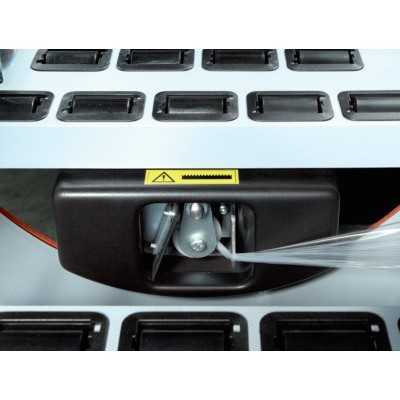

Integrated film cutting and clamping system
Low power and air consumption
Can be integrated into conveyor lines
Technical specifications
| Parameter | Value |
|---|
| Model | WRAPPY M4 |
| Type | Manual rotating ring wrapping machine |
| Reel width | 125 mm |
| Ring diameter | 410 mm |
| Ring rotation speed | 10–150 rpm |
| Air consumption per cycle | 1.8 Nl/cycle |
| Working pressure | 6 ± 1 bar |
| Power supply | 230 V 1Ph+N 50/60 Hz |
| Installed power | 0.55 kW |
| Cutting and clamping unit | Standard |
| Adjustable conveyors | 800 mm |
| Max film outer diameter | 200 mm |
| Reel inner diameter | 76 mm |
| Film thickness | 17–50 µm |
